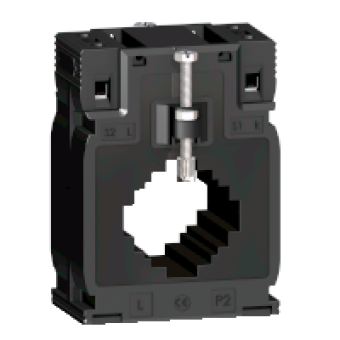

METSECT5MC025 - current transformer tropicalised DIN mount 250 5 for bars 10x40 20x32 25x25, Schneider Electric
- Product Code: METSECT5MC025
- Brand: Schneider Electric
- Availability: To be confirmed
- € 20.27 Ex Tax:
MAIN CHARACTERISTICS
range
POWERLOGIC
range of product
POWERLOGIC CT
product name
CT
product or component type
CURRENT TRANSFORMER
secondary current
5 A
accuracy class
class 0.5 maximum power: 3 VA
[In] rated current
250 A
COMPLEMETARY CHARACTERISTICS
current transformer type
TROPICALISED FOR BUSBAR+CABLE
current transformer ratio
250 5
[Ith] conventional free air thermal current
15 KA
dynamic withstand current
2.5 ITH
safety factor
<= 5
[Ue] rated operational voltage
< 720 V AC at 50/60 Hz
[Ui] rated insulation voltage
3 KV
mounting mode
BY SCREWS
mounting support
BUSBAR
width
70 mm outside
height
95 mm outside
depth
45 mm outside
diameter
32 mm
product weight
0.375 KG
[Uimp] rated impulse withstand voltage
3 kV
electrical insulation class
CLASS B
opening of bars
40.5 X 10.5
cable outer diameter
32 mm max
sealing
WITHOUT
compatibility code
MC
