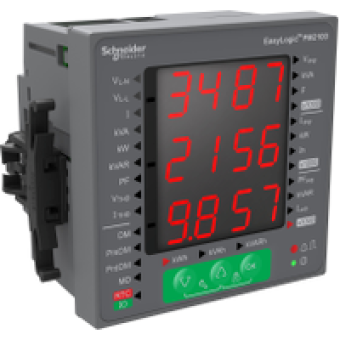

METSEPM2120 - EasyLogic PM2120 - Power & Energy meter - up to 15th H - 7S - RS485 - class 1, Schneider Electric
- Product Code: METSEPM2120
- Brand: Schneider Electric
- Availability: To be confirmed
- € 145.16 Ex Tax:
MAIN CHARACTERISTICS
range
EASYLOGIC
product name
EASYLOGIC PM2100
device short name
PM2120
product or component type
POWER METER
COMPLEMETARY CHARACTERISTICS
device application
POWER MONITORING
power quality analysis
TOTAL HARMONIC DISTORTION
type of measurement
APPARENT POWER MINMAX TOTAL
metering type
ACTIVE POWER P P1 P2 P3
accuracy class
CLASS 1 ACTIVE ENERGY ACCORDING TO IEC 62053-21
measurement accuracy
+/- 0.5 % apparent power
measurement current
5...6000 MA
measurement voltage
35...480 V AC 5060 HZ BETWEEN PHASES
frequency measurement range
45...65 HZ
[Us] rated supply voltage
44...277 V AC +- 10 45...65 HZ
network frequency
50 HZ
[In] rated current
1 A
max power consumption in VA
NO RENDITION
power consumption in W
3.3 W POWER LINES AC
input impedance
current (impedance 0.3 mOhm)
tamperproof of settings
PROTECTED BY ACCESS CODE
display type
7 SEGMENTS LED
display colour
RED
messages display capacity
3 FIELDS OF 4 CHARACTERS
display digits
12 DIGITS - 14.2 MM IN HEIGHT
Demand intervals
CONFIGURABLE FROM 1 TO 60 MIN
information displayed
DEMAND CURRENT PAST VALUE
control type
3 X BUTTON
local signalling
RED LED OUTPUT SIGNAL
number of inputs
0
number of outputs
0
communication port protocol
MODBUS RTU 2 WIRES 4800 BPS 9600 BPS 19200 BPS 38.4 KBPS EVENODD OR NONE INSULATION 2500 V
communication port support
SCREW TERMINAL BLOCK RS485
data recording
TIME STAMPING
function available
REAL TIME CLOCK
sampling rate
64 SAMPLES CYCLE
Cyber security option
ENABLE DISABLE SERIAL PORTS
communication service
REMOTE MONITORING
product certifications
CE conforming to IEC 61010-1
mounting mode
CLIP-ON
mounting position
VERTICAL
mounting support
framework
provided equipment
INSTALLATION GUIDE 1
measurement category
CATEGORY III UP TO <= 480 V
electrical insulation class
CLASS II
flame retardance
V-0 CONFORMING TO UL 94
connections - terminals
CURRENT TRANSFORMER BOTTOM SCREW CONNECTION X 6
material
POLYCARBONATE
cut-out dimensions
90 X 90 MM
width
96 MM
depth
76.09 MM TOTAL
height
96 MM
product weight
300 G
