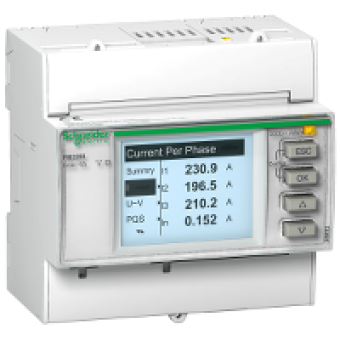

METSEPM3200 - PM3200powermeter, Schneider Electric
- Product Code: METSEPM3200
- Brand: Schneider Electric
- Availability: To be confirmed
- € 190.55 Ex Tax:
MAIN CHARACTERISTICS
range
POWERLOGIC
product name
POWERLOGIC PM3000
device short name
PM3200
product or component type
POWER METER
market segment
SUB FEEDER IN BUILDINGS SMALL BUILDING FOR BILLING ENERGY COST MANAGEMENT
COMPLEMETARY CHARACTERISTICS
power quality analysis
UP TO THE 15TH HARMONIC
device application
POWER MONITORING
type of measurement
ACTIVE AND REACTIVE POWER
supply voltage
100...277 V AC 45...65 HZ
network frequency
50 HZ
[In] rated current
1 A
type of network
1P+N
power consumption in VA
5 VA
display type
BACKLIT LCD
display resolution
128 X 96 PIXELS
sampling rate
32 SAMPLES CYCLE
measurement current
0.05...6 A
analogue input type
CURRENT 0..5 A
measurement voltage
50..330 V AC 45..65 HZ DIRECT
frequency measurement range
45...65 HZ
number of inputs
0
measurement accuracy
0.3 CURRENT 0.5...6 A
accuracy class
CLASS 0.5S ACTIVE ENERGY ACCORDING TO IEC 62053-22
number of outputs
0
information displayed
tariff 4
communication port protocol
-
communication port support
-
data recording
MIN MAX OF INSTT VALUES
mounting mode
CLIP-ON
mounting support
DIN RAIL
standards
EN 61010-1
product certifications
CE CONFORMING TO EN 61010-1
width
90 MM
depth
70 MM
height
95 MM
product weight
0.26 KG
