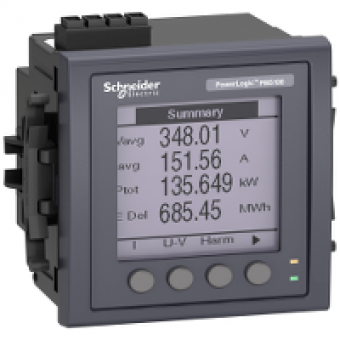

METSEPM5111 - PM5111 powermeter w modbus - upto 15th H - 1DO 33alarms - flush - MID, Schneider Electric
- Product Code: METSEPM5111
- Brand: Schneider Electric
- Availability: To be confirmed
- € 276.23 Ex Tax:
MAIN CHARACTERISTICS
range
POWERLOGIC
product name
POWERLOGIC PM5000
device short name
PM5111
product or component type
POWER METER
market segment
MAIN INCOMER IN BUILDINGS SMALL BUILDING FOR BILLING ENERGY COST MANAGEMENT
COMPLEMETARY CHARACTERISTICS
power quality analysis
UP TO THE 15TH HARMONIC
device application
POWER MONITORING
type of measurement
CURRENT
supply voltage
100...415 V AC 45...65 HZ
network frequency
50 HZ
[In] rated current
1 A
type of network
1P+N
max power consumption in VA
NO RENDITION
display type
BACKLIT LCD
display resolution
128 X 128
sampling rate
64 SAMPLES CYCLE
measurement current
10...9000 MA
analogue input type
current (impedance 0.3 mOhm)
measurement voltage
35...690 V AC 45...65 Hz between phases
frequency measurement range
45...65 HZ
number of inputs
0
measurement accuracy
+/- 0.5 % active energy
accuracy class
CLASS 0.5S ACTIVE ENERGY ACCORDING TO IEC 62053-22
number of outputs
1 DIGITAL
communication port protocol
MODBUS RTU AND ASCII 2 WIRES 9.6 19.2 AND 38.4 KBAUDS EVENODD OR NONE INSULATION 2500 V
communication port support
RS485
data recording
MIN MAX OF INSTT VALUES
mounting mode
FLUSH-MOUNTED
mounting support
framework
standards
IEC 60529
product certifications
CE conforming to IEC 61010-1
width
96 MM
depth
72 MM
height
96 MM
product weight
380 G
