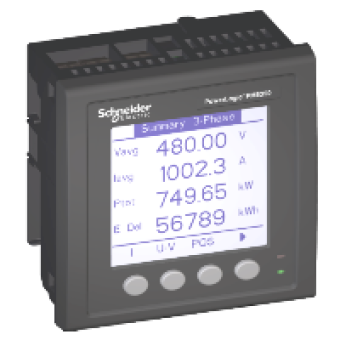

METSEPM5350 - PM5350 power monitor, Schneider Electric
- Product Code: METSEPM5350
- Brand: Schneider Electric
- Availability: To be confirmed
- € 369.60 Ex Tax:
MAIN CHARACTERISTICS
range
POWERLOGIC
product name
POWERLOGIC PM5350
device short name
PM5350
product or component type
POWER METER
market segment
MAIN INCOMER IN BUILDINGS SMALL BUILDING FOR BILLING ENERGY COST MANAGEMENT
COMPLEMETARY CHARACTERISTICS
power quality analysis
TOTAL DEMAND DISTORTION
device application
POWER MONITORING
type of measurement
CURRENT
supply voltage
85...265 V AC 45...65 HZ
network frequency
50 HZ
[In] rated current
1 A
type of network
1P+N
max power consumption in VA
NO RENDITION
display type
BACKLIT LCD
display resolution
6 LINES
sampling rate
32 SAMPLES CYCLE
measurement current
0...5 A
analogue input type
current 0.05...9 A (impedance <= 0.3 Ohm)
measurement voltage
20..690 V AC PHASE TO PHASE
frequency measurement range
45...70 HZ
number of inputs
4 DIGITAL
measurement accuracy
0.3 CURRENT
accuracy class
CLASS 0.5S ACTIVE ENERGY ACCORDING TO IEC 62053-22
number of outputs
2 RELAY
information displayed
tariff 4
communication port protocol
JBUS
communication port support
RS485 TERMINAL BLOCK
data recording
ALARMS
mounting mode
FLUSH-MOUNTED
type of installation
INDOOR INSTALLATION
standards
IEC 61010-1
product certifications
CE
width
96 MM
depth
44 MM
height
96 MM
product weight
0.25 KG
