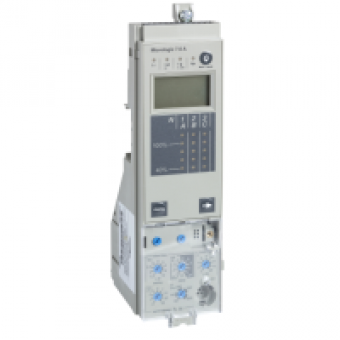

48362 - Micrologic 7.0 A trip unit - LSIV - for NW 08..63 drawout, Schneider Electric
- Product Code: 48362
- Brand: Schneider Electric
- Availability: To be confirmed
- € 1,391.60 Ex Tax:
MAIN CHARACTERISTICS
range
MASTERPACT
range of product
MASTERPACT NW
product name
MICROLOGIC
product or component type
CONTROL UNIT
range compatibility
MASTERPACT NW08...40
device application
DISTRIBUTION
poles description
3P
network type
AC
network frequency
50 60 HZ
trip unit name
MICROLOGIC 7.0 A
trip unit technology
ELECTRONIC
trip unit protection functions
SELECTIVE E LKG PROTECTION
trip unit rating
800 A 50 DC
protection type
EARTH LEAKAGE
earth-leakage protection
WITH
COMPLEMETARY CHARACTERISTICS
mounting mode
DRAWOUT
long time pick-up adjstment type Ir
ADJUSTABLE
long time pick-up adjustment range
0.4..1 IN
long time delay adjustment type
ADJUSTABLE 9 SETTING
[tr] long-time delay adjustment range
0.7..16.6 S 7.2 X IR
thermal memory
20 MN
short-time pick-up adjustment type Isd
ADJUSTABLE 9 SETTING
[Isd] short-time pick-up adjustment range
1.5..10 X IR
short-time delay adjustment type
ADJUSTABLE 5 SETTING
[tsd] short-time delay adjustment range
0.02...0.5 S
instantaneous pick-up adjustment type Ii
ADJUSTABLE
instantaneous pick-up adjustment range
2..15 X IN
zone selective interlocking ZSI
WITH
residual earth-leakage sensitity adjustment type
ADJUSTABLE 9 SETTINGS
[IÃŽâ€n] residual earth-leakage sensitive adjustment
0.5...30 A
residual earth-leakage time delay adjustment type
ADJUSTABLE 5 SETTINGS
[ÃŽâ€t] residual earth-leakage time delay adjustment
60...1000 MS
display type
DIGITAL DISPLAY
type of measurement
AMMETER
