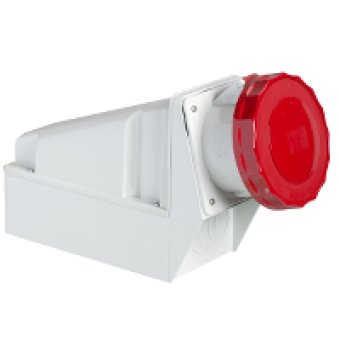

81194 - PratiKa industrial socket - 125 A - 3P + E - 380...415 V AC - IP67, Schneider Electric
- Product Code: 81194
- Brand: Schneider Electric
- Availability: To be confirmed
- € 71.96 Ex Tax:
MAIN CHARACTERISTICS
range
PRATIKA
product name
PRATIKA SOCKET
product or component type
SOCKET
device short name
PRATIKA SOCKET
plug, socket category
LV
poles description
3P+E
network type
AC
outlet standard
INDUSTRIAL
COMPLEMETARY CHARACTERISTICS
mounting mode
WALL-MOUNTED
plug, socket, control station shape
ANGLED
[In] rated current
125 A
[Ue] rated operational voltage
380..415 V
network frequency
50 60 HZ
ground lug clockwise position
6 H
plug, socket material
HOUSING SELF-EXTINGUISHING ENGINEERING POLYMER
contacts material
PINS STAINLESS STEEL
connections - terminals
CAPTIVE SCREWS CPTLY LOOSENED
cable cross section
16...70 MM
cable entry
CABLE GLAND
thread type
PG48
product weight
1.932 KG
base dimension
114 X 224 MM
height
340 MM
width
114 MM
depth
213 MM
colour
GREY RAL 7035
voltage colour
RED
market segment
SMALL COMMERCIAL
compatibility code
PRATIKA SOCKET
