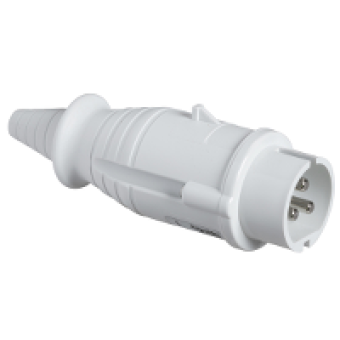

82304 - PratiKa wander plug - straight - 16 A - 3P - 40...50 V AC - IP44, Schneider Electric
- Product Code: 82304
- Brand: Schneider Electric
- Availability: To be confirmed
- € 5.13 Ex Tax:
MAIN CHARACTERISTICS
range
PRATIKA
product name
PRATIKA PLUG
product or component type
WANDER PLUG
device short name
PRATIKA PLUG
plug, socket category
ELV
poles description
3P
network type
AC
outlet standard
INDUSTRIAL
COMPLEMETARY CHARACTERISTICS
plug, socket, control station shape
STRAIGHT
[In] rated current
16 A
[Ue] rated operational voltage
40..50 V
network frequency
50 60 HZ
secondary keyway clockwise position
12 H
plug, socket material
SELF-EXTINGUISHING ENGINEERING POLYMER HOUSING
contacts material
NICKEL PLATED BRASS PINS
connections - terminals
CAPTIVE SCREWS
cable cross section
4...10 MM
cable outer diameter
6...23 MM
cable entry
CABLE GLAND
thread type
PG21
product weight
0.159 KG
height
158 MM
width
57.5 MM
depth
57.5 MM
colour
GREY RAL 7035
voltage colour
WHITE
compatibility code
PRATIKA PLUG
