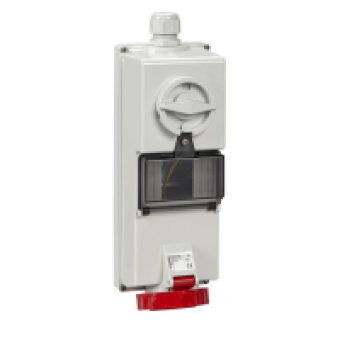

82759 - Isoblock interlocked socket - 16 A - 3P + N + E - 380...415 V AC - IP65 - wall, Schneider Electric
- Product Code: 82759
- Brand: Schneider Electric
- Availability: To be confirmed
- € 54.48 Ex Tax:
MAIN CHARACTERISTICS
range
PRATIKA
range of product
PRATIKA
product name
ISOBLOCK SOCKET
product or component type
INTERLOCKED SOCKET
device short name
ISOBLOCK SOCKET
plug, socket category
LV
industrial socket type
B16
poles description
3P+N+E
network type
AC
outlet standard
INDUSTRIAL
COMPLEMETARY CHARACTERISTICS
mounting mode
WALL-MOUNTED
[In] rated current
16 A
[Ue] rated operational voltage
380..415 V
network frequency
50 60 HZ
ground lug clockwise position
6 H
protection type
WITHOUT PROTECTION
product compatibility
MODULAR DEVICE
total number of 18 mm modules
4.5
plug, socket material
SELF-EXTINGUISHING ENGINEERING POLYMER HOUSING
contacts material
NICKEL PLATED BRASS SLEEVES
connections - terminals
CAPTIVE SCREWS
cable cross section
<= 10 MM
cable outer diameter
<= 25 MM
cable entry
CABLE GLAND
thread type
PG21
product weight
1.017 KG
base dimension
144 X 318 MM
height
318 MM
width
144 MM
depth
147 MM
colour
GREY RAL 7035
voltage colour
RED
compatibility code
ISOBLOCK SOCKET
