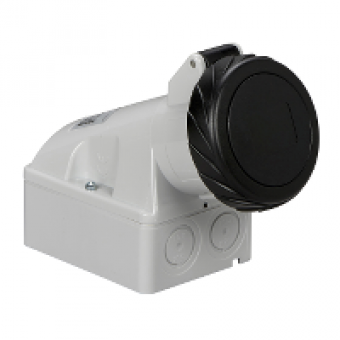

83161 - PratiKa industrial socket - 16 A - 3P + E - 480...500 V AC - IP67, Schneider Electric
- Product Code: 83161
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range
PRATIKA
product name
PRATIKA SOCKET
product or component type
SOCKET
device short name
PRATIKA SOCKET
plug, socket category
LV
poles description
3P+E
network type
AC
outlet standard
INDUSTRIAL
COMPLEMETARY CHARACTERISTICS
mounting mode
WALL-MOUNTED
plug, socket, control station shape
ANGLED
[In] rated current
16 A
[Ue] rated operational voltage
480..500 V
network frequency
50 60 HZ
ground lug clockwise position
7 H
plug, socket material
HOUSING SELF-EXTINGUISHING ENGINEERING POLYMER
contacts material
PINS STAINLESS STEEL
connections - terminals
CAPTIVE SCREWS CPTLY LOOSENED
cable cross section
1...4 MM
cable outer diameter
8...15 MM
cable entry
CABLE GLAND
thread type
PG16
product weight
0.338 KG
base dimension
80 X 100 MM
height
156 MM
width
80 MM
depth
127 MM
colour
GREY RAL 7035
voltage colour
BLACK
compatibility code
PRATIKA SOCKET
