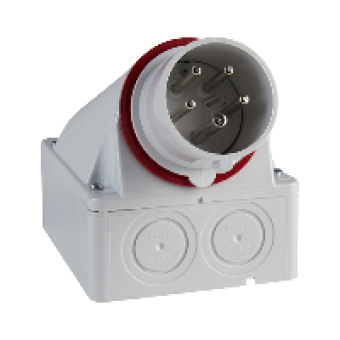

83531 - PratiKa industrial plug - 16 A - 3P + N + E - 380...415 V AC - IP44, Schneider Electric
- Product Code: 83531
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range
PRATIKA
product name
PRATIKA PLUG
product or component type
PLUG WITH PHASE INVERTER
device short name
PRATIKA PLUG
plug, socket category
LV
poles description
3P+N+E
network type
AC
outlet standard
INDUSTRIAL
COMPLEMETARY CHARACTERISTICS
mounting mode
WALL-MOUNTED
plug, socket, control station shape
ANGLED
[In] rated current
16 A
[Ue] rated operational voltage
380..415 V
network frequency
50 60 HZ
ground lug clockwise position
6 H
plug, socket material
SELF-EXTINGUISHING ENGINEERING POLYMER
contacts material
NICKEL PLATED BRASS PINS
connections - terminals
CAPTIVE SCREWS
cable cross section
1...4 MM
cable outer diameter
8...15 MM
product weight
0.42 KG
base dimension
106 X 130 MM
height
134 MM
width
106 MM
depth
125 MM
colour
GREY RAL 7035
voltage colour
RED
compatibility code
PRATIKA PLUG
The Schneider Electric 83531 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
