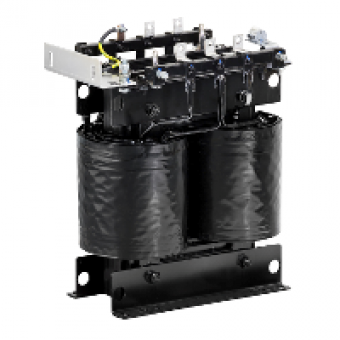

84408 - BC Imprego Health Care dry type transformer single-phase IP00 6KVA, Schneider Electric
- Product Code: 84408
- Brand: Schneider Electric
- Availability: To be confirmed
- € 3,566.29 Ex Tax:
MAIN CHARACTERISTICS
range of product
BC IMPREGO
product or component type
DRY TYPE TRANSFORMER
network type
AC
type of installation
INDOOR
COMPLEMETARY CHARACTERISTICS
type of cooling
AN AIR NATURAL
rated power
6.3 KVA
network frequency
50 60 HZ
thermal class
CLASS F
phase description
1 PHASE
primary voltage
230 V
isolation level
PRIMARY 1.1 KV
[Ui] rated insulation voltage
PRIMARY CIRCUIT 1.1 KV AC
secondary voltage
WITH MIDDLE POINT 230 V
vector group
LI00
temperature rise
100 K WINDING
impedance voltage
2.7 PC
no-load losses
60 W
load losses
170 W
operating altitude
< 1000 M
winding material
ALUMINIUM
temperature class
H
insulation material
IMPREGNATED LV
mounting mode
FIXED
IP degree of protection
IP00
product weight
55 KG
height
510 MM
width
262 MM
length
405 MM
sound power level
65 DB AT 1 M
protection device
VIGITHERM
The Schneider Electric 84408 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
