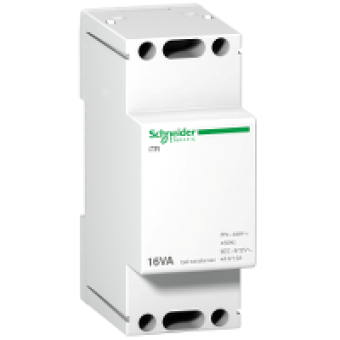

A9A15212 - Acti 9 modular bell transfomer iTR - 230 V 50..60 Hz - output 8..12 V - 16 VA, Schneider Electric
- Product Code: A9A15212
- Brand: Schneider Electric
- Availability: To be confirmed
- € 21.51 Ex Tax:
MAIN CHARACTERISTICS
range of product
ACTI 9
range of product
ACTI 9
product name
ACTI 9 ITR
product or component type
TRANSFORMER
device short name
ITR
transformer type
BELL TRANSFORMER
COMPLEMETARY CHARACTERISTICS
[Ue] rated operational voltage
230 V AC 5060 HZ
output voltage
8/12 V : +/- 15 % on load
output short-circuit protection
BUILT-IN
rated power in VA
16 VA
mounting mode
FIXED
mounting support
35 MM SYMMETRICAL DIN RAIL
9 mm pitches
4
height
89 MM
width
36 MM
depth
60 MM
colour
WHITE
auxiliary connection terminal
TUNNEL TYPE TERMINALS RIGID <= 2.5 MM
wire stripping length
6 MM
tightening torque
0.5 N.M
market segment
RESIDENTIAL
compatibility code
ITR
