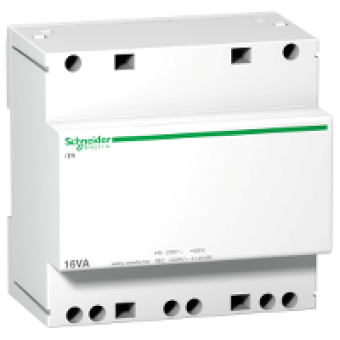

A9A15218 - modular safety transfomer iTR - 230 V 50..60 Hz - output 12..24 V - 16 VA, Schneider Electric
- Product Code: A9A15218
- Brand: Schneider Electric
- Availability: To be confirmed
- € 29.17 Ex Tax:
MAIN CHARACTERISTICS
transformer type
SAFETY TRANSFORMER
range
ACTI 9
range of product
ACTI 9
product name
ACTI 9 ITR
product or component type
TRANSFORMER
device short name
ITR
COMPLEMETARY CHARACTERISTICS
[Ue] rated operational voltage
230 V AC 5060 HZ
output voltage
12/24 V : +/-5 % on load
output short-circuit protection
BUILT-IN
rated power in VA
16 VA
mounting mode
FIXED
mounting support
35 MM SYMMETRICAL DIN RAIL
9 mm pitches
10
height
89 MM
width
90 MM
depth
60 MM
colour
WHITE
auxiliary connection terminal
TUNNEL TYPE TERMINALS <= 4 MM
market segment
RESIDENTIAL
compatibility code
ITR
