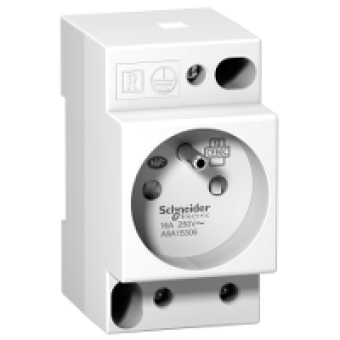

A9A15306 - DIN socket iPC - 2P+E - 16A - 250VAC - NFC 15100 - french std, Schneider Electric
- Product Code: A9A15306
- Brand: Schneider Electric
- Availability: To be confirmed
- € 8.66 Ex Tax:
MAIN CHARACTERISTICS
range of product
ACTI 9
range of product
ACTI 9
product name
ACTI 9 IPC
product or component type
MODULAR SOCKET OUTLET
device short name
IPC
poles description
2P+E
outlet standard
FRENCH
COMPLEMETARY CHARACTERISTICS
[In] rated current
16 A
[Ue] rated operational voltage
250 V AC 5060 HZ
mounting mode
FIXED
mounting support
SYMMETRICAL DIN RAIL
9 mm pitches
5
height
84 MM
width
45 MM
depth
60 MM
product weight
98 G
colour
WHITE
connections - terminals
TUNNEL TYPE TERMINAL 1 CABLES FLEXIBLE 6 MM
wire stripping length
13 MM
tightening torque
1.2 N.M
market segment
SMALL COMMERCIAL
compatibility code
IPC
