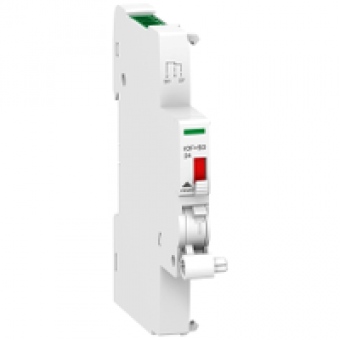

A9A26897 - iOF+SD24 open/close & fault indicating auxiliary contact with Ti24 top connector, Schneider Electric
- Product Code: A9A26897
- Brand: Schneider Electric
- Availability: To be confirmed
- € 16.33 Ex Tax:
MAIN CHARACTERISTICS
range of product
ACTI 9
range of product
IC60
product or component type
OC+FAULT CONTACT W PLC ITF
device short name
IOF+SD 24
signal contacts composition
1 NO + 1 NC
[Ie] rated operational current
2...100 mA at 24 V DC ± 20%
9 mm pitches
1
COMPLEMETARY CHARACTERISTICS
range compatibility
ACTI 9 ISW-NA
[Ui] rated insulation voltage
500 V CONFORMING TO IEC 60664-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60664-1
local signalling
MECHANICAL INDICATOR
mounting mode
CLIP-ON
mounting support
DIN RAIL
height
88 MM
width
9 MM
depth
73.5 MM
product weight
25 G
colour
WHITE
electrical durability
20000 CYCLES CONFORMING TO IEC 60947-5-4
connections - terminals
SPRING-LOADED TERMINAL TI24 IN TOP 2 CABLES 0.5...1.5 MM FLEXIBLE
wire stripping length
10 MM
product compatibility
IC60
market segment
RESIDENTIAL
