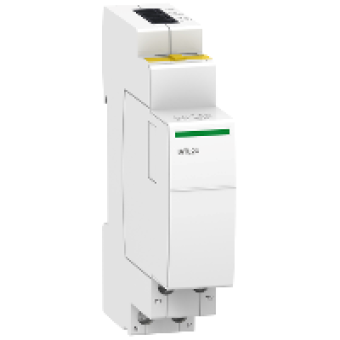

A9C15424 - Acti 9 iATL24 control and remote indication with Ti24 connector, Schneider Electric
- Product Code: A9C15424
- Brand: Schneider Electric
- Availability: To be confirmed
- € 49.32 Ex Tax:
MAIN CHARACTERISTICS
range of product
ACTI 9
range of product
ACTI 9
device short name
IATL24
product or component type
CONTROL AND INDICATION AUX
signal contacts composition
1 NO
signalling circuit voltage
24 V DC +- 20 0.002...0.1 A
[Uc] control circuit voltage
230 V AC 5060 HZ IMPULSE >= 200 MS
[Us] rated supply voltage
230 V AC 5060 HZ
COMPLEMETARY CHARACTERISTICS
control type
REMOTE CONTROL
[Ui] rated insulation voltage
250 V AC 5060 HZ
[Uimp] rated impulse withstand voltage
8 KV
power consumption in W
< 1 W
mounting mode
FIXED ON THE LEFT OF CT
mounting support
DIN RAIL
comb busbar and distribution block compatibility
BOTTOM YES
electrical durability
250000 CYCLES CONFORMING TO IEC 60947-5-1
immunity to microbreaks
10 MS
undervoltage behaviour
NO OPENING IF LOSS OF 24 V DC
9 mm pitches
2
height
81 MM
width
18 MM
depth
68 MM
colour
WHITE
connections - terminals
POWER SUPPLY TUNNEL TYPE TERMINALS FOR 1 RIGID CABLE S 0.5...10 MM
wire stripping length
POWER SUPPLY 9 MM BOTTOM
tightening torque
POWER SUPPLY 1 N.M BOTTOM
product compatibility
WITH PLC
market segment
SMALL COMMERCIAL
