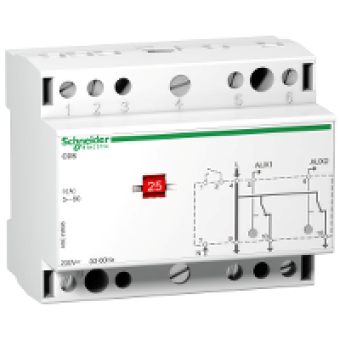

A9C15908 - CDS - single phase load-shedding contactor - 2 channels, Schneider Electric
- Product Code: A9C15908
- Brand: Schneider Electric
- Availability: To be confirmed
- € 173.31 Ex Tax:
MAIN CHARACTERISTICS
range of product
ACTI 9
range of product
ACTI 9
product name
ACTI 9 DES
product or component type
LOAD-SHEDDING CONTACTOR
device short name
CDS
number of channels
2
control and monitoring type
CASCADE
poles description
1P
COMPLEMETARY CHARACTERISTICS
setting
10
power consumption in VA
12 VA
[Ue] rated operational voltage
230 V - 15..10 AC 5060 HZ
rated current
NON-PRIORITY CIRCUIT 15 A
local signalling
2 LEDS YELLOW LOAD-SHEDDING INDICATION
mounting support
35 MM SYMMETRICAL DIN RAIL
9 mm pitches
10
connections - terminals
NON-PRIORITY CIRCUIT SCREW TERMINAL 2.5...10 MM FLEXIBLE WIRES
IP degree of protection
IP20
height
77 MM
width
90 MM
depth
60 MM
product weight
0.3 KG
colour
WHITE RAL 9003
tightening torque
NO RENDITION
wire stripping length
NO RENDITION
compatibility code
CDS
