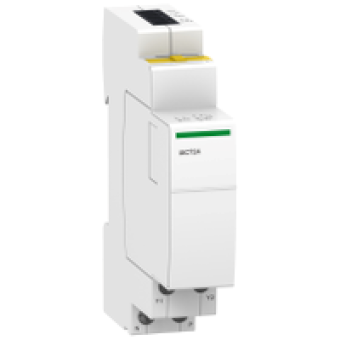

A9C15924 - Acti 9 iACT - 24V DC control and auxiliary contact 1 NO with Ti24 PLC interface, Schneider Electric
- Product Code: A9C15924
- Brand: Schneider Electric
- Availability: To be confirmed
- € 55.80 Ex Tax:
MAIN CHARACTERISTICS
range of product
ICT
range
ACTI 9
product or component type
CONTROL AND INDICATION AUX
device short name
IACT24
signal contacts composition
1 NO
signalling circuit voltage
24 V DC - 20...20 0.002...0.1 A
[Uc] control circuit voltage
230 V AC 5060 HZ MAINTAINED >= 200 MS
control type
REMOTE CONTROL
[Us] rated supply voltage
230 V AC 5060 HZ
COMPLEMETARY CHARACTERISTICS
mounting mode
FIXED ON THE LEFT OF CT
mounting support
DIN RAIL
comb busbar and distribution block compatibility
BOTTOM YES
9 mm pitches
2
height
84 MM
width
18 MM
depth
60 MM
colour
WHITE
immunity to microbreaks
10 MS
undervoltage behaviour
NO OPENING IF LOSS OF 24 V DC
electrical durability
250000 CYCLES CONFORMING TO IEC 60947-5-1
connections - terminals
control circuit : tunnel type terminals for 2 flexible cable(s) 2.5 mm²
wire stripping length
CONTROL CIRCUIT 10 MM BOTTOM
tightening torque
CONTROL CIRCUIT 1 N.M BOTTOM
product compatibility
WITH PLC
market segment
RESIDENTIAL
