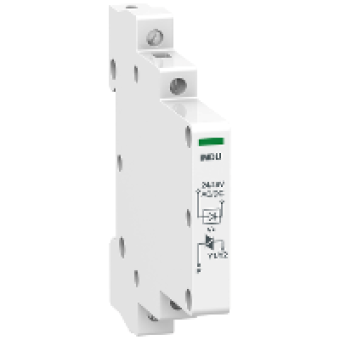

A9C18195 - iMDU 24-48V AC or DC voltage adaption module, Schneider Electric
- Product Code: A9C18195
- Brand: Schneider Electric
- Availability: To be confirmed
- € 73.24 Ex Tax:
MAIN CHARACTERISTICS
range of product
ACTI 9
range of product
IC60
product or component type
VOLTAGE ADAPTOR
device short name
IMDU
COMPLEMETARY CHARACTERISTICS
range compatibility
ACTI 9 RCA
[Ui] rated insulation voltage
500 V
[Uimp] rated impulse withstand voltage
6 KV
[Uc] control circuit voltage
24...48 V AC DC
mounting mode
FIXED
mounting support
35 MM SYMMETRICAL DIN RAIL
9 mm pitches
1
height
78 MM
width
9 MM
depth
74 MM
product weight
53 G
colour
WHITE
auxiliary connection terminal
TUNNEL TYPE TERMINALS CABLE S 1.5 MM RIGID
wire stripping length
6 MM
tightening torque
1 N.M
market segment
SMALL COMMERCIAL
