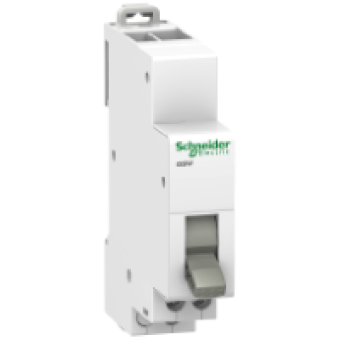

A9E18072 - linear switch - iSSW - 1 NO + 1 NC - 20A - 250 V AC - 2 positions, Schneider Electric
- Product Code: A9E18072
- Brand: Schneider Electric
- Availability: To be confirmed
- € 8.90 Ex Tax:
MAIN CHARACTERISTICS
range of product
ACTI 9
range
ACTI 9
product name
ACTI 9 ISSW
product or component type
LINEAR SWITCH
device short name
ISSW
device application
ELECTRICAL CIRCUIT CONTROL
contacts type and composition
1 NO + 1 NC
[Ue] rated operational voltage
250 V AC 5060 HZ
standards
IEC 60669-1
COMPLEMETARY CHARACTERISTICS
[Ie] rated operational current
20 A 250 V AC 5060 HZ
control type
TOGGLE 2 POSITIONS
marking
0 - 1
mounting mode
CLIP-ON
mounting support
DIN RAIL
9 mm pitches
2
height
82 MM
width
18 MM
depth
75 MM
colour
WHITE
electrical durability
AC-22 : 30000 cycles
connections - terminals
STAGGERED TUNNEL TERMINAL DOWNSIDE 2 CABLE S 0.5...2.5 MM FLEXIBLE
wire stripping length
9 MM DOWNSIDE
tightening torque
1 N.M DOWNSIDE
market segment
RESIDENTIAL
compatibility code
ISSW
