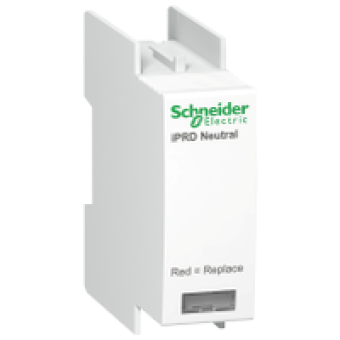

A9L00002 - cartridge C neutral-350 for surge arrester iPRD, Schneider Electric
- Product Code: A9L00002
- Brand: Schneider Electric
- Availability: To be confirmed
- € 28.24 Ex Tax:
MAIN CHARACTERISTICS
range of product
IPRD
product or component type
CARTRIDGE
device short name
C NEUTRAL-350
surge arrester type
ELEC DISTRIBUTION NETWORK
COMPLEMETARY CHARACTERISTICS
surge arrester class type
TYPE 2
surge arrester technology
GDT
earthing system
TN
[Ue] rated operational voltage
230 V AC 50 HZ
nominal discharge current
20 KA
maximum discharge current
65 KA
[Uc] maximum continuous operating voltage
260 V
[Up] voltage protection level
1.4 KV TYPE 2
local signalling
FLAG COLOR WHITERED
mounting mode
PLUG IN
mounting support
INTO SPD MODULE
9 mm pitches
2
height
57 MM
width
18 MM
depth
56 MM
product weight
0.044 KG
colour
WHITE RAL 9003
material
PBT
response time
< 100 NS
The Schneider Electric A9L00002 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
