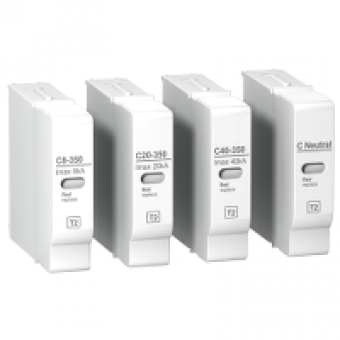

A9L16311 - cartridge C20-350 for surge arrester iQuick PRD, Schneider Electric
- Product Code: A9L16311
- Brand: Schneider Electric
- Availability: To be confirmed
- € 26.56 Ex Tax:
MAIN CHARACTERISTICS
range of product
IQUICK PRD
product or component type
CARTRIDGE
device short name
C20-350
surge arrester type
ELEC DISTRIBUTION NETWORK
COMPLEMETARY CHARACTERISTICS
surge arrester class type
TYPE 2
surge arrester technology
MOV
earthing system
TN
[Ue] rated operational voltage
230 V AC 50 HZ
nominal discharge current
15 KA
maximum discharge current
20 KA
[Uc] maximum continuous operating voltage
350 V
[Up] voltage protection level
1.2 KV TYPE 2
local signalling
FLAG COLOR WHITERED
mounting mode
PLUG IN
mounting support
INTO SPD MODULE
9 mm pitches
1.3
height
50 MM
width
12 MM
depth
57 MM
colour
WHITE RAL 9003
material
PBT
response time
< 25 NS
