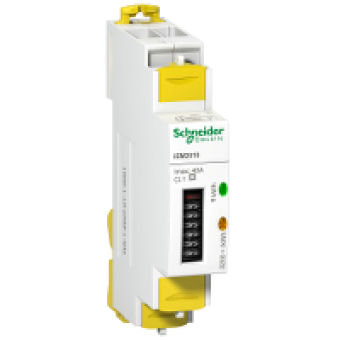

A9MEM2010 - modular single phase power meter iEM2010 - 230V - 40A with pulse, Schneider Electric
- Product Code: A9MEM2010
- Brand: Schneider Electric
- Availability: To be confirmed
- € 61.11 Ex Tax:
MAIN CHARACTERISTICS
range
ACTI 9
family
ACTI 9 IEM2000
device short name
IEM2010
product or component type
ENERGY METER
market segment
NO RENDITION
COMPLEMETARY CHARACTERISTICS
poles description
1P+N
type of measurement
ACTIVE POWER
device application
SUB BILLING
accuracy class
ACTIVE ENERGY CLASS 1 ACCORDING TO IEC 62053-21
Input type
direct input
Rated current
40 A
rated voltage
230 V +- 20
network frequency
50 HZ
frequency measurement range
48...62 HZ
technology type
ELECTRONIC
display type
ELECTROMECHANICAL
sampling rate
32 SAMPLES CYCLE
measurement current
0...40 A
display digits
7
maximum value measured
999999.9 KWH
communication port protocol
-
communication port support
-
local signalling
INDICATOR LIGHT GREEN POWER ON
Digital inputs
0
Digital outputs
1 PULSE
output voltage
5...35 V DC 20 MA
impulse duration
120 MS
max power consumption in VA
NO RENDITION
mounting mode
CLIP-ON
mounting support
DIN RAIL
connections - terminals
POWER CIRCUIT BOTTOM TUNNEL TYPE TERMINALS FOR 1 10 MM
tightening torque
power circuit : 1.2 N.m
standards
IEC 61557-12
product certifications
MID
compatibility code
IEM2010
