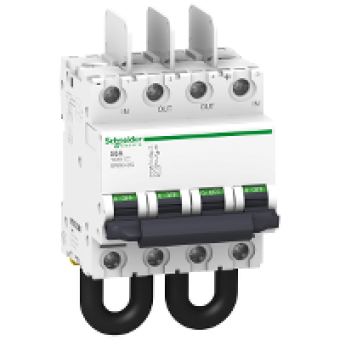

A9N61699 - SW60-DC - 2P - 50 A - 1000 V, Schneider Electric
- Product Code: A9N61699
- Brand: Schneider Electric
- Availability: To be confirmed
- € 44.38 Ex Tax:
MAIN CHARACTERISTICS
switch application
PHOTOVOLTAIC INVERTER PROT
range of product
SW60
product or component type
SWITCH DISCONNECTOR
device short name
SW60-DC
poles description
2P
utilisation category
DC-21A
suitability for isolation
YES ENIEC 60947-3
COMPLEMETARY CHARACTERISTICS
[Ie] rated operational current
50 A DC-21A 1000 V DC 40 DC
Voltage Drop
251 MV 5.02 MOHM 12.54 W 50 A
[Ui] rated insulation voltage
1000 V DC
[Uimp] rated impulse withstand voltage
6 KV
control type
TOGGLE
mounting mode
FIXED
mounting support
35 MM SYMMETRICAL DIN RAIL
connection pitch
NO RENDITION
9 mm pitches
8
height
132.7 MM
width
72 MM
depth
77.4 MM
product weight
0.53 KG
colour
WHITE
mechanical durability
20000 CYCLES
electrical durability
3000 CYCLES
connections - terminals
TUNNEL TERMINAL UPSIDE 1...35 MM RIGID
tightening torque
3.5 N.M
market segment
RESIDENTIAL
compatibility code
SW60 DC
