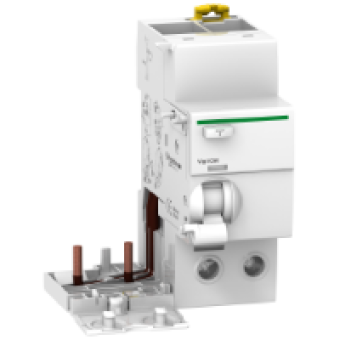

A9V25263 - Vigi iC60 - earth leakage add-on block - 2P - 63A - 300mA - A type - selective, Schneider Electric
- Product Code: A9V25263
- Brand: Schneider Electric
- Availability: To be confirmed
- € 116.26 Ex Tax:
MAIN CHARACTERISTICS
range
ACTI 9
range of product
IC60
product or component type
ADD-ON RESIDUAL CRRT DEVICES
device short name
VIGI IC60
poles description
2P
[In] rated current
63 A
earth-leakage sensitivity
300 MA
earth-leakage protection time delay
SELECTIVE
Earth leakage protection type
TYPE A
network type
AC
network frequency
50 60 HZ
[Ue] rated operational voltage
230400 V AC 5060 HZ CONFORMING TO EN 61009-1
standards
EN 61009-1
9 mm pitches
4
COMPLEMETARY CHARACTERISTICS
range compatibility
ACTI 9 IC60
device location in system
OUTGOER
overvoltage protection
WITHOUT
residual current tripping technology
VOLTAGE INDEPENDENT
[Ui] rated insulation voltage
500 V AC 5060 HZ CONFORMING TO IEC 60947-2
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947-2
local signalling
TRIP INDICATOR
mounting mode
CLIP-ON
mounting support
DIN RAIL
electrical connection to mcb
BY SCREWS
comb busbar and distribution block compatibility
BOTTOM YES
height
91 MM
width
72 MM
depth
73.5 MM
product weight
0.165 KG
colour
WHITE
connections - terminals
TUNNEL TYPE TERMINAL DOWNSIDE 1 CABLES 1...35 MM RIGID WITHOUT CABLE END
wire stripping length
14 MM BOTTOM
tightening torque
3.5 N.M BOTTOM
product compatibility
SINGLE TERMINAL
market segment
SMALL COMMERCIAL
