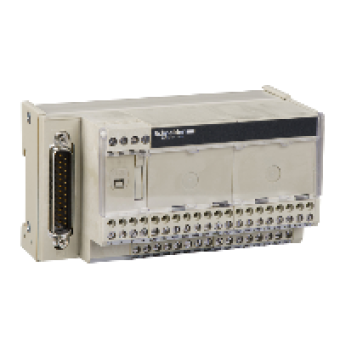

ABE7CPA31 - connection sub-base ABE7 - for distribution of 8 analog input channels, Schneider Electric
- Product Code: ABE7CPA31
- Brand: Schneider Electric
- Availability: To be confirmed
- € 467.52 Ex Tax:
MAIN CHARACTERISTICS
range of product
ADVANTYS TELEFAST ABE7
product or component type
CONN SUB-BASE F CNR + ANA CH
number of channels
8
connections - terminals
SCREW TYPE TERMINALS CLAMPING CAPACITY 1 X 0.09...1 X 1.5 MM AWG 28...AWG 16 FLEXIBLE WITH CABLE END
COMPLEMETARY CHARACTERISTICS
function of module
ISOLATED ANALOGUE INPUT COMPATIBLE WITH PREMIUM
product compatibility
TSXAEY810 COMPATIBLE WITH PREMIUM
[Uc] control circuit voltage
24 V DC
connection to PLC
SUB-D 25
fixing mode
BY CLIPS ON 35 MM SYMMETRICAL DIN RAIL
[Ui] rated insulation voltage
2000 V BETWEEN TERMINALSMOUNTING RAILS
installation category
II CONFORMING TO IEC 60664-1
tightening torque
0.6 N.M WITH FLAT 3.5 MM
product weight
0.41 KG
The Schneider Electric ABE7CPA31 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
