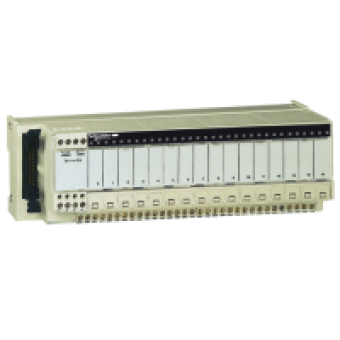

ABE7H16F43 - passive connection sub-base ABE7 - 16 outputs - fuses - Led - isolator, Schneider Electric
- Product Code: ABE7H16F43
- Brand: Schneider Electric
- Availability: To be confirmed
- € 121.13 Ex Tax:
MAIN CHARACTERISTICS
range of product
ADVANTYS TELEFAST ABE7
product or component type
PASSIVE DISCRETE I O SUB-BASE
sub-base type
OUTPUT SUB-BASE
[Us] rated supply voltage
19...30 V CONFORMING TO IEC 61131-2
number of channels
16
number of terminal per channel
2
connections - terminals
SCREW TYPE TERMINALS CLAMPING CAPACITY 1 X 0.09...1 X 1.5 MM AWG 28...AWG 16 FLEXIBLE WITH CABLE END
channel additional information
1 SWT DISCONNECTOR PER CHANNEL
COMPLEMETARY CHARACTERISTICS
supply voltage type
DC
number of horizontal rows
1
status LED
1 LED PER CHANNEL GREEN FOR CHANNEL STATUS
polarity distribution
0 V
short-circuit protection
2 A INTERNAL FUSE 5 X 20 MM FAST BLOW PLC END
connector type
HE-10
pin number
20 PINS
fixing mode
BY CLIPS ON 35 MM SYMMETRICAL DIN RAIL
supply current
<= 1.8 A
current per channel
<= 0.125 A
current per output common
<= 1.8 A
voltage drop on power supply fuse
0.3 V
voltage drop per channel
<= 2 V
[Ui] rated insulation voltage
2000 V
installation category
II CONFORMING TO IEC 60664-1
tightening torque
0.6 N.M WITH FLAT 3.5 MM
width
206 MM
product weight
0.64 KG
