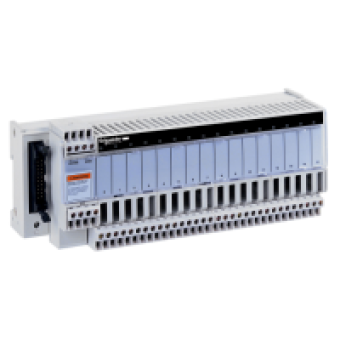

ABE7P16T330 - sub-base for plug-in relay ABE7 - 16 channels - relay 12.5 mm, Schneider Electric
- Product Code: ABE7P16T330
- Brand: Schneider Electric
- Availability: To be confirmed
- € 111.41 Ex Tax:
MAIN CHARACTERISTICS
range of product
ADVANTYS TELEFAST ABE7
product or component type
SUB-BASE FOR PLUG-IN RELAY
sub-base type
OUTPUT SUB-BASE
[Us] rated supply voltage
19...30 V CONFORMING TO IEC 61131-2
number of channels
16
connections - terminals
SCREW TYPE TERMINALS CLAMPING CAPACITY 1 X 0.09...1 X 1.5 MM AWG 28...AWG 16 FLEXIBLE WITH CABLE END
COMPLEMETARY CHARACTERISTICS
supply voltage type
DC
product compatibility
ABE7ACC21
status LED
1 LED PER CHANNEL GREEN FOR CHANNEL STATUS
polarity distribution
VOLT-FREE
short-circuit protection
1 A INTERNAL FUSE 5 X 20 MM FAST BLOW PLC END
fixing mode
BY CLIPS ON 35 MM SYMMETRICAL DIN RAIL
supply current
<= 1 A
voltage drop on power supply fuse
0.3 V
current per output common
<= 16 A
[Ui] rated insulation voltage
300 V BETWEEN COIL CIRCUITCONTACT CIRCUITS CONFORMING TO IEC 60947-1
[Uimp] rated impulse withstand voltage
2.5 KV
installation category
II CONFORMING TO IEC 60664-1
tightening torque
0.6 N.M WITH FLAT 3.5 MM
product weight
0.9 KG
