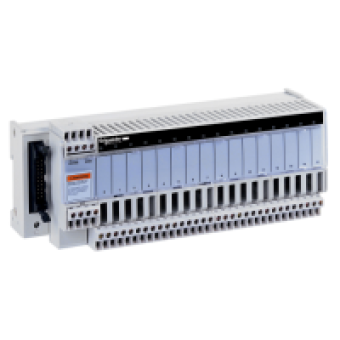

ABE7R08S210 - sub-base - soldered electromechanical relays ABE7 - 8 channels - relay 10 mm, Schneider Electric
- Product Code: ABE7R08S210
- Brand: Schneider Electric
- Availability: To be confirmed
- € 74.82 Ex Tax:
MAIN CHARACTERISTICS
range of product
ADVANTYS TELEFAST ABE7
product or component type
ELECTROMECH O P RLY SUB-BASE
[Us] rated supply voltage
24 V DC PLC END
number of channels
8
number of terminal per channel
2
COMPLEMETARY CHARACTERISTICS
terminal block type
REMOVABLE
polarity distribution
VOLT-FREE
fixing mode
BY CLIPS ON 35 MM SYMMETRICAL DIN RAIL
width
125 MM
current per output common
<= 10 A
current per channel
5 A PREACTUATOR END
minimum switching current
10 MA AT >= 5 V
drop-out voltage
2.4 V AT 20 DC PLC END
switching frequency
<= 0.5 HZ
threshold tripping voltage
AT 40 C
drop-out current
1 MA AT 20 DC
power dissipation per channel in W
<= 0.36 W PLC END
contacts type and composition
1 NO PREACTUATOR END
maximum switching voltage
250 V AC 5060 HZ CONFORMING TO IEC 60947-5-1
electrical durability
500000 CYCLES MAXIMUM SWITCHING CURRENT 600 MA AT 24 V DC-13 10 MS PREACTUATOR END
electrical reliability
0.00000001
operating time
<= 10 MS BETWEEN COIL ENERGISATION AND NO CLOSING
contact bounce time
<= 5 MS 1 NO
operating rate in Hz
10 HZ NO LOAD
mechanical durability
20000000 CYCLES
[Uimp] rated impulse withstand voltage
2.5 KV CONFORMING TO IEC 60947-1
[Ui] rated insulation voltage
2000 V
installation category
II CONFORMING TO IEC 60664-1
tightening torque
0.6 N.M WITHFLAT 3.5 MM
product weight
0.448 KG
