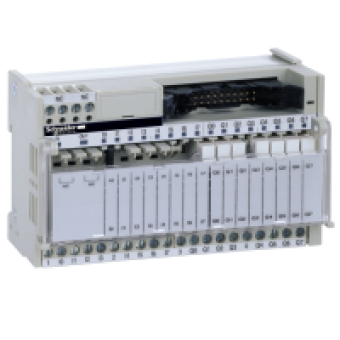

ABE7R16M111 - sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 5 mm, Schneider Electric
- Product Code: ABE7R16M111
- Brand: Schneider Electric
- Availability: To be confirmed
- € 197.03 Ex Tax:
MAIN CHARACTERISTICS
range of product
ADVANTYS TELEFAST ABE7
product or component type
SUB-BSE W PLUG-IN ELECMECH RLY
sub-base type
OUTPUT SUB-BASE
[Us] rated supply voltage
19...30 V CONFORMING TO IEC 61131-2
number of channels
16
connections - terminals
SCREW TYPE TERMINALS CLAMPING CAPACITY 1 X 0.14...1 X 1.5 MM AWG 26...AWG 16 FLEXIBLE WITH CABLE END
COMPLEMETARY CHARACTERISTICS
supply voltage type
DC
product compatibility
ABR7S11
contacts type and composition
1 NO
status LED
1 LED FOR POWER ON
polarity distribution
CMN DIST GP 4+2 I P CMN TERM
short-circuit protection
1 A INTERNAL FUSE 5 X 20 MM FAST BLOW PLC END
mounting mode
BY CLIPS ON 35 MM DIN RAIL
supply current
<= 1 A
voltage drop on power supply fuse
0.3 V
current per output common
<= 5 A SCREW TYPE TERMINALS
[Ui] rated insulation voltage
2000 V BETWEEN TERMINALSMOUNTING RAILS
current per module
<= 12 A
[Uimp] rated impulse withstand voltage
2.5 KV
installation category
II CONFORMING TO IEC 60664-1
tightening torque
0.6 N.M WITH FLAT 3.5 MM
product weight
0.6 KG
