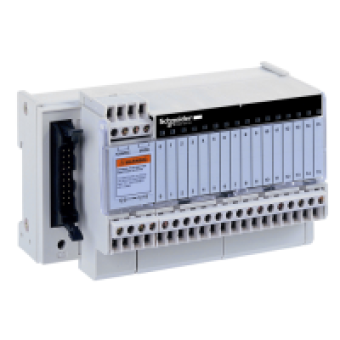

ABE7S16S1B2 - sub-base - soldered solid state output relay ABE7 - 16 outputs - 0.5 A, Schneider Electric
- Product Code: ABE7S16S1B2
- Brand: Schneider Electric
- Availability: To be confirmed
- € 120.67 Ex Tax:
MAIN CHARACTERISTICS
range of product
ADVANTYS TELEFAST ABE7
product or component type
SOLID STATE O P RELAY SUB-BASE
[Us] rated supply voltage
24 V DC PLC END
number of channels
16
relay type
SOLDERED SOLID STATE RELAY
COMPLEMETARY CHARACTERISTICS
terminal block type
REMOVABLE
isolation PLC/operative part
NO
fixing mode
BY CLIPS ON 35 MM SYMMETRICAL DIN RAIL
width
125 MM
current state 0 guaranteed
0.4 MA PLC END
voltage state 0 guaranteed
3.4 V PLC END
current state 1 guaranteed
3.1 MA PLC END
voltage state 1 guaranteed
16.9 V PLC END
current per output common
<= 9 A
current per channel
0.5 A PREACTUATOR END
minimum switching current
1 MA
drop-out voltage
<= 0.3 V PREACTUATOR END
maximum switching current
700 MA DC-12
tungsten load
10 W DC-6
residual current
<= 0.5 MA PREACTUATOR END
fault type
OVERLOAD
fault indication
WITHOUT
switchable inductive energy L/R
<= 400 U.I MS
circuit breaker threshold
>= 0.75 A
response time
<= 0.1 MS FROM STATE 1 TO 0
switching frequency
< 0.6 LI2 HZ
installation category
II CONFORMING TO IEC 60664-1
tightening torque
0.6 N.M WITHFLAT 3.5 MM
product weight
0.4 KG
