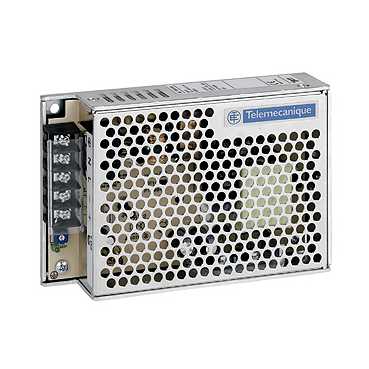

ABL1RPM12083 - regulated SMPS - single phase - 100..240 V input - 12 V output - 100 W, Schneider Electric
- Product Code: ABL1RPM12083
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
PHASEO DEDICATED
product or component type
POWER SUPPLY
power supply type
REGULATED SWITCH MODE
rated power in W
100 W
input voltage
AC SINGLE PHASE
output voltage
12 V DC
power supply output current
8.3 A
operating position
ANY POSITION
vibration resistance
2 GN F = 9...150 HZ CONFORMING TO ENIEC 61131-2
name of test
CONDUCTED INTERFERENCE CONFORMING TO EN 61000-4-8 LEVEL 4
COMPLEMETARY CHARACTERISTICS
input voltage limits
85..264 V
network frequency
47..63 HZ
inrush current
<= 50 A at 115 V AC
cos phi
0.7...0.95
efficiency
> 80
power dissipation in W
25 W
current consumption
0.7 A AT 240 V
input protection type
INTEGRATED FUSE NOT INCGBL
output voltage limits
10.8..13.2 V
line and load regulation
+ -3 PT
holding time
>= 10 MS AT 100 V
output protection type
AGAINST OVERLOAD PROTECTION TECHNOLOGY 1.1...1.5 X IN
connections - terminals
SCREW TYPE TERMINALS FOR GROUND CONNECTION CONNECTION CAPACITY 1 X 4 MM AWG 12
marking
CE
mounting support
PANEL
operating altitude
2000 M
output coupling
PARALLEL
overvoltage category
II
meantime between failure [MTBF]
> 100000 H AT 40 DC
status LED
1 LED GREEN FOR OUTPUT VOLTAGE
product weight
0.64 KG
anti-harmonic filter
LOW FREQUENCY HARMONIC CURRENT
compatibility code
ABL1R
