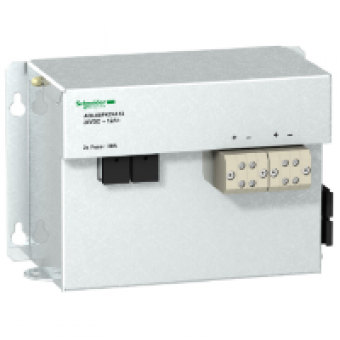

ABL8BPK24A07 - battery - 24 V DC - 40 A - 7 AH - for battery control module, Schneider Electric
- Product Code: ABL8BPK24A07
- Brand: Schneider Electric
- Availability: To be confirmed
- € 143.03 Ex Tax:
MAIN CHARACTERISTICS
range of product
PHASEO
product or component type
BATTERY MODULE
input voltage
24 V DC
output voltage
24 V DC
maximum output current
40 A
battery capacity
7 AH
holding time
< 20 H AT 0.35 A 20 DC
COMPLEMETARY CHARACTERISTICS
input voltage limits
21..29 V
load current
0.7 A
charging time
72 H
holding current
1 A
output protection type
AGAINST OVERLOAD AND SHORT-CIRCUITS PROTECTION TECHNOLOGY 1 X 30 A AUTOMOTIVE TYPE FUSE
connections - terminals
SCREW TYPE TERMINALS FOR INPUT CONNECTION CONNECTION CAPACITY 2 X 0.5...2 X 10 MM AWG 20...AWG 8
self-discharge rate
15 PT 6 MONTHS
fixing mode
BY 2 SCREWS SCREWS = 5 MM ON HORIZONTAL PANEL OPERATING POSITION HORIZONTAL
output coupling
PARALLEL
operating altitude
2000 M
service life in hours
11000 H AT 40 DC
marking
CE
product weight
6.5 KG
holding time
0.5 S
holding solution
USE OF BATTERY MODULES
compatibility code
ABL8B
