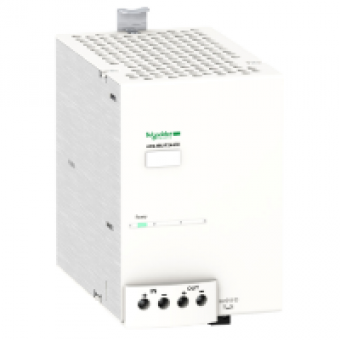

ABL8BUF24400 - buffer module - 24..28.8 V DC - 40 A - for power supply, Schneider Electric
- Product Code: ABL8BUF24400
- Brand: Schneider Electric
- Availability: To be confirmed
- € 207.86 Ex Tax:
MAIN CHARACTERISTICS
range of product
PHASEO
product or component type
BUFFER MODULE
input voltage
24..28.8 V DC
output voltage
UIN-0.25 V IN NOMINAL MODE DC
maximum output current
40 A
holding time
0.1 S AT 40 A
COMPLEMETARY CHARACTERISTICS
input voltage limits
22..30 V
current consumption
0.6 A ON LOAD
charging time
25 H
power dissipation in W
< 15 W
activation threshold
UIN-1 V AND 22 V MIN
number of output channels
1
holding current
1 A
output protection type
AGAINST OVERLOAD PROTECTION TECHNOLOGY > 45 A
connections - terminals
SCREW TYPE TERMINALS FOR INPUT CONNECTION CONNECTION CAPACITY 2 X 0.5...2 X 10 MM AWG 20...AWG 8
fixing mode
BY CLIPS ON 35 MM SYMMETRICAL DIN RAIL OPERATING POSITION HORIZONTAL
output coupling
PARALLEL
operating altitude
2000 M
marking
CE
name of test
ELECTROSTATIC DISCHARGES CONFORMING TO ENIEC 61000-4-2
local signalling
1 LED GREEN FUNCTION BUFFER READY
product weight
1.2 KG
holding time
0.5 S
holding solution
USE OF BUFFER MODULES
compatibility code
ABL8B
The Schneider Electric ABL8BUF24400 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
