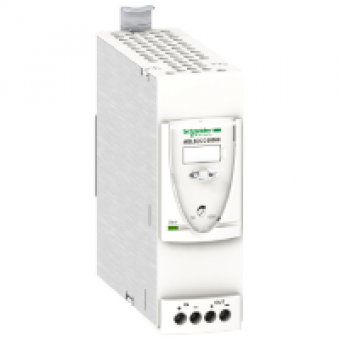

ABL8DCC05060 - converter module 30 W - 24..28.8 V DC 5 V DC - 6 A - for regulated SMPS, Schneider Electric
- Product Code: ABL8DCC05060
- Brand: Schneider Electric
- Availability: To be confirmed
- € 77.17 Ex Tax:
MAIN CHARACTERISTICS
range of product
PHASEO UNIVERSAL
product or component type
CONVERTER MODULE
rated power in W
30 W
input voltage
24..28.8 V DC
output voltage
5 V DC
power supply output current
6 A
COMPLEMETARY CHARACTERISTICS
input voltage limits
22..30 V
efficiency
80
power dissipation in W
7 W
input protection type
AGAINST REVERSE POLARITY
output voltage limits
5..6.5 V
line and load regulation
1..3 PT
residual ripple
<= 100 MV
output protection type
AGAINST OVERLOAD PROTECTION TECHNOLOGY AUTOMATIC RESET
connections - terminals
SCREW TYPE TERMINALS FOR INPUT CONNECTION CONNECTION CAPACITY 2 X 0.5...2 X 4 MM AWG 24...AWG 10
fixing mode
BY CLIPS ON 35 MM SYMMETRICAL DIN RAIL OPERATING POSITION HORIZONTAL WITH DERATING TO 40
operating altitude
2000 M
name of test
INDUCED ELECTROMAGNETIC FIELD CONFORMING TO ENIEC 61000-4-6 LEVEL 3
local signalling
1 LED GREEN FUNCTION OUTPUT VOLTAGE > 4 V
product weight
0.3 KG
compatibility code
ABL8D
