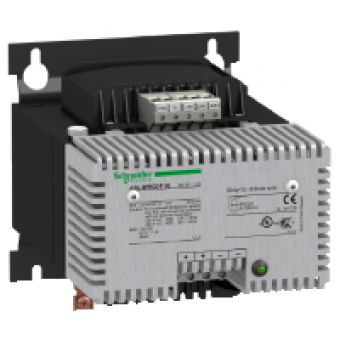

ABL8FEQ24200 - rectified and filtered power supply - 1 or 2-phase - 400 V AC - 24 V - 20 A, Schneider Electric
- Product Code: ABL8FEQ24200
- Brand: Schneider Electric
- Availability: To be confirmed
- € 437.05 Ex Tax:
MAIN CHARACTERISTICS
range of product
PHASEO RECTIFIED
product or component type
POWER SUPPLY
power supply type
RECTIFIED AND FILTERED
rated power in W
480 W
input voltage
230 V AC SINGLE PHASE TERMINALS N-L1
output voltage
24 V DC
power supply output current
20 A
operating position
HORIZONTAL AT 40 DC
COMPLEMETARY CHARACTERISTICS
input voltage limits
207..253 V
network frequency limits
47...63 HZ
input voltage tolerance
+ -15 V
inrush current
18.4 A AT 400 V
cos phi
0.671 AT 400 V
efficiency
80
power dissipation in W
96 W
residual ripple
<= 1200 MV
holding time
10 MS
output protection type
AGAINST OVERVOLTAGE PROTECTION TECHNOLOGY 2 J PEAK LIMITER
connections - terminals
SCREW TYPE TERMINALS FOR INPUT CONNECTION CONNECTION CAPACITY 5 X 2.5...5 X 4 MM AWG 14...AWG 11
marking
CE
fixing mode
BY 4 SCREWS
output coupling
PARALLEL
operating altitude
3000 M
name of test
CONDUCTEDRADIATED EMISSIONS CONFORMING TO EN 55011 CLASS B
status LED
1 LED GREEN FOR OUTPUT VOLTAGE
depth
128 MM
height
215 MM
width
175 MM
product weight
13.22 KG
anti-harmonic filter
LOW FREQUENCY HARMONIC CURRENT
compatibility code
ABL8F
