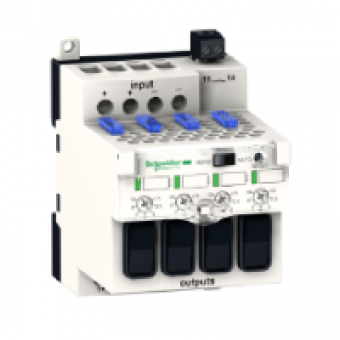

ABL8PRP24100 - electronic protection module - 28..28.8 V DC - 10 A - for regulated SMPS, Schneider Electric
- Product Code: ABL8PRP24100
- Brand: Schneider Electric
- Availability: To be confirmed
- € 91.75 Ex Tax:
MAIN CHARACTERISTICS
range of product
PHASEO
product or component type
ELECTRONIC PROTECTION MODULE
input voltage
24..28.8 V DC
output voltage
UIN-0.3 V DC
maximum output current
10 A PER CHANNEL RATING 12.5457810
COMPLEMETARY CHARACTERISTICS
input voltage limits
19..32 V
input current
40 A
number of output channels
4
output protection type
AGAINST OVERLOAD PROTECTION TECHNOLOGY 1.3 X IN
complementary function
2-POLE BREAKING BY CHANNEL
breaking capacity
1000 A AT 32 V DC BY FUSE
connections - terminals
SCREW TYPE TERMINALS FOR INPUT CONNECTION CONNECTION CAPACITY 4 X 0.5...4 X 10 MM AWG 20...AWG 8
fixing mode
BY CLIPS ON 35 MM SYMMETRICAL DIN RAIL OPERATING POSITION VERTICAL
operating altitude
2000 M
marking
CE
name of test
ELECTROSTATIC DISCHARGES CONFORMING TO ENIEC 61000-4-2
local signalling
1 LED PER CHANNEL GREENRED FUNCTION CHANNEL STATUS
product weight
0.47 KG
compatibility code
ABL8P
