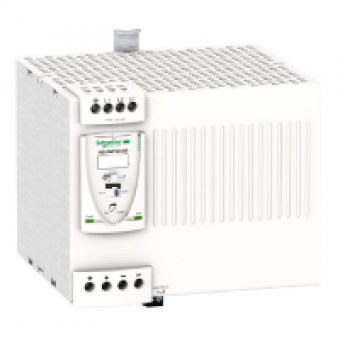

ABL8WPS24400 - regulated SMPS - 3-phase - 380..500 V - 24 V - 40 A, Schneider Electric
- Product Code: ABL8WPS24400
- Brand: Schneider Electric
- Availability: To be confirmed
- € 333.31 Ex Tax:
MAIN CHARACTERISTICS
range of product
PHASEO
product or component type
POWER SUPPLY
power supply type
REGULATED SWITCH MODE
input voltage
380...500 V AC THREE PHASE TERMINALS L1 L2 L3
output voltage
24 V DC
rated power in W
960 W
provided equipment
POWER FACTOR CORRECTION FILTER CONFORMING TO IEC 61000-3-2
power supply output current
40 A
output protection type
AGAINST OVERLOAD PROTECTION TECHNOLOGY MANUAL OR AUTOMATIC RESET
ambient air temperature for operation
50...60 C WITH
COMPLEMETARY CHARACTERISTICS
input voltage limits
320..550 V
network frequency
47..63 HZ
inrush current
<= 25 A FOR 2 MS
cos phi
0.85
efficiency
92
output voltage limits
24..28.8 V ADJUSTABLE
power dissipation in W
76.8 W
line and load regulation
1..3 PT
holding time
>= 14 MS AT 400 V
permissible temporary current boost
1.5 X IN FOR 4 S
connections - terminals
REMOVABLE SCREW TERMINAL BLOCK FOR DIAGNOSTIC RELAY CONNECTION CAPACITY 2 X 2.5 MM
marking
CE
mounting support
35 X 15 MM SYM DIN RAIL
operating position
VERTICAL
operating altitude
2000 M
output coupling
PARALLEL
name of test
ELECTROSTATIC DISCHARGES CONFORMING TO ENIEC 61000-4-2
status LED
1 LED GREEN AND RED FOR OUTPUT VOLTAGE
depth
155 MM
height
143 MM
width
165 MM
product weight
2.7 KG
anti-harmonic filter
LOW FREQUENCY HARMONIC CURRENT
compatibility code
ABL8W
