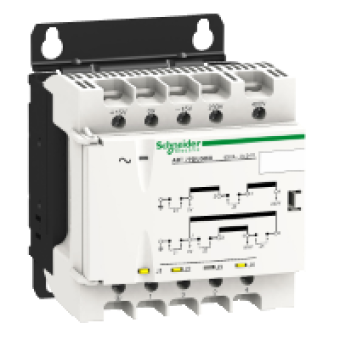

ABT7PDU006B - voltage transformer - 230..400 V - 2 x 24 V - 63 VA, Schneider Electric
- Product Code: ABT7PDU006B
- Brand: Schneider Electric
- Availability: To be confirmed
- € 69.09 Ex Tax:
MAIN CHARACTERISTICS
range of product
PHASEO UNIVERSAL
product or component type
SAFETY + ISOLATION TRANSFORMER
rated power in VA
63 VA
input voltage
230 V AC SINGLE PHASE TERMINALS N-L1
output voltage
2448 V AC
secondary winding
DOUBLE
protective cover
WITH
ambient air temperature for operation
-20...60 C
COMPLEMETARY CHARACTERISTICS
input voltage limits
207..253 V
network frequency limits
47...63 HZ
input voltage tolerance
+ -15 V
efficiency
83
power dissipation in W
12.9 W
voltage variation at nominal load
0047 AT 400 V
output sustained overvoltage
0033 NO LOAD HOT STATE
voltage drop at rated load
3.88
no load losses
8.11 W
short-circuit voltage
7.50 PT
output protection type
AGAINST OVERLOAD PROTECTION TECHNOLOGY EXTERNAL
connections - terminals
SCREW TYPE TERMINALS FOR INPUT CONNECTION CONNECTION CAPACITY 5 X 4 MM AWG 11
marking
CE
fixing mode
BY 4 SCREWS SCREWS = 5.5 MM ON VERTICAL PANEL OPERATING POSITION HORIZONTAL
output coupling
GROUNDING OF SECONDARY
operating altitude
3000 M
electrical insulation class
CLASS B
status LED
ORANGE FOR INPUT VOLTAGE
product weight
1.94 KG
compatibility code
ABT7
