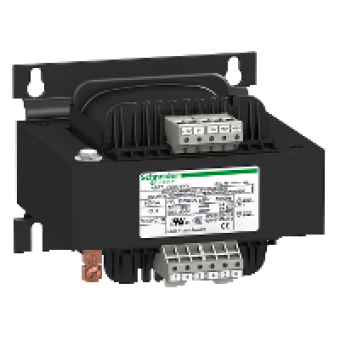

ABT7PDU160G - voltage transformer - 230..400 V - 2 x 115 V - 1.6 KVA, Schneider Electric
- Product Code: ABT7PDU160G
- Brand: Schneider Electric
- Availability: To be confirmed
- € 588.56 Ex Tax:
MAIN CHARACTERISTICS
range of product
PHASEO UNIVERSAL
product or component type
SAFETY + ISOLATION TRANSFORMER
rated power in VA
1600 VA
input voltage
230 V AC SINGLE PHASE TERMINALS N-L1
output voltage
115230 V AC
secondary winding
DOUBLE
protective cover
WITHOUT
ambient air temperature for operation
-20...60 C
COMPLEMETARY CHARACTERISTICS
input voltage limits
207..253 V
network frequency limits
47...63 HZ
input voltage tolerance
+ -15 V
efficiency
94
power dissipation in W
102.1 W
voltage variation at nominal load
00286 AT 400 V
output sustained overvoltage
0027 NO LOAD HOT STATE
voltage drop at rated load
3.14
no load losses
26.38 W
short-circuit voltage
3.50 PT
output protection type
AGAINST OVERLOAD PROTECTION TECHNOLOGY EXTERNAL
connections - terminals
SCREW TYPE TERMINALS FOR INPUT CONNECTION CONNECTION CAPACITY 5 X 4 MM AWG 11
marking
CE
fixing mode
BY 4 SCREWS SCREWS = 7 MM ON VERTICAL PANEL OPERATING POSITION HORIZONTAL
output coupling
GROUNDING OF SECONDARY
operating altitude
3000 M
electrical insulation class
CLASS F
product weight
20 KG
compatibility code
ABT7
