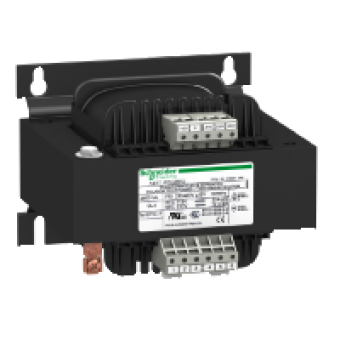

ABT7PDU250G - voltage transformer - 230..400 V - 2 x 115 V - 2.5 KVA, Schneider Electric

  • € 641.78 Ex Tax:

MAIN CHARACTERISTICS
range of product
PHASEO UNIVERSAL
product or component type
SAFETY + ISOLATION TRANSFORMER
rated power in VA
2500 VA
input voltage
230 V AC SINGLE PHASE TERMINALS N-L1
output voltage
115230 V AC
secondary winding
DOUBLE
protective cover
WITHOUT
ambient air temperature for operation
-20...60 C
COMPLEMETARY CHARACTERISTICS
input voltage limits
207..253 V
network frequency limits
47...63 HZ
input voltage tolerance
+ -15 V
efficiency
96
power dissipation in W
104.2 W
voltage variation at nominal load
0017 AT 230 V
output sustained overvoltage
1.5 NO LOAD HOT STATE
voltage drop at rated load
1.7
no load losses
31.6 W
short-circuit voltage
2.20 PT
output protection type
AGAINST OVERLOAD PROTECTION TECHNOLOGY EXTERNAL
connections - terminals
SCREW TYPE TERMINALS FOR INPUT CONNECTION CONNECTION CAPACITY 5 X 4 MM AWG 11
marking
CE
fixing mode
BY 4 SCREWS SCREWS = 10 MM ON VERTICAL PANEL OPERATING POSITION HORIZONTAL
output coupling
GROUNDING OF SECONDARY
operating altitude
3000 M
electrical insulation class
CLASS F
product weight
28 KG
compatibility code
ABT7
