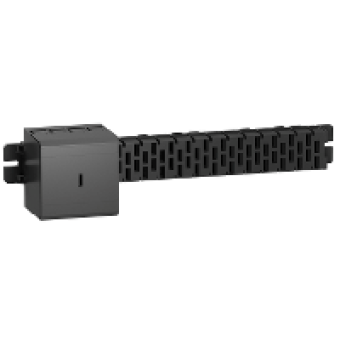

AK5JB1410 - busbar 160A - length 1100 mm - for AK5, Schneider Electric
- Product Code: AK5JB1410
- Brand: Schneider Electric
- Availability: To be confirmed
- € 140.88 Ex Tax:
MAIN CHARACTERISTICS
range of product
AK5
range
LINERGY
product name
HK
product or component type
BUSBAR
device application
DISTRIBUTION
Tap-offs (18 mm)
54
bar length
1100 MM
enclosure/cubicle width
1200
network type
AC
[Ie] rated operational current
160 A AT 35 DC
[Ue] rated operational voltage
400 V OFF-LOAD PLUGGING-IN AND UNPLUGGING WITH SUPPLY SWITCHED ON CONFORMING TO IEC 60439-1
number of conductors
4
COMPLEMETARY CHARACTERISTICS
bar width
40 MM
width
80 MM
depth
84 MM
network frequency
50 60 HZ
[Ui] rated insulation voltage
600 V CONFORMING TO CSA
peak current
25 KA
I²t on activation
10000000 A.S
protection type
AM FUSES IN = 160 A ISC = 100 KA IE = 160 A
connections - terminals
CONNECTOR 2.5...70 MM FLEXIBLE CABLE WITH CABLE END
tightening torque
10 N.M
mounting position
VERTICAL MOUNTING USING SIDE STOP AK5BT01 ON MOUNTING PLATES AK5PA
flame retardance
V0 CONFORMING TO UL 94
product weight
2.1 KG
