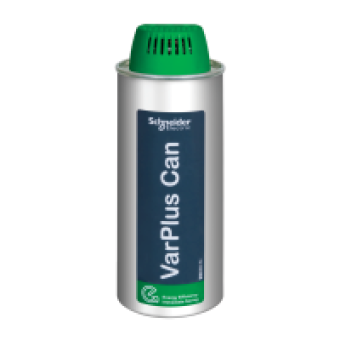

BLRCH170A204B48 - VarPlus Can HDuty Capacitor - 17/20.4 kvar - 480 V - 50/60Hz, Schneider Electric
- Product Code: BLRCH170A204B48
- Brand: Schneider Electric
- Availability: To be confirmed
- € 66.90 Ex Tax:
MAIN CHARACTERISTICS
range of product
VARPLUS CAN
product or component type
CAPACITORS
network frequency
50 60 HZ
series name
HDUTY
network harmonic content
<= 20 PT
Electrical parameters
480 V - 50 Hz : 17 kvar
maximum permissible voltage
1.1 X UN 8 HOURS OVER 24 HOURS
continuous overcurrent capacity
1.8 X IN
rated voltage
480 V AC 5060 HZ
COMPLEMETARY CHARACTERISTICS
dielectric losses
< 0.2 WKVAR
power losses
< 0.5 WKVAR
capacitance tolerance
- 5 PT TO 10 PT
voltage test
2.15 X UN AC BETWEEN TERMINALS FOR 10 S
inrush current
250 X IN
switching operation per year
<= 7000
service life in hours
<= 130000 H
dielectric material
METALLIZED POLYPROPYLENE FILM WITH ZNAL ALLOY SPECIAL RESISTIVITY PROFILE SPECIAL EDGE WAVE CUT
impregnation material
NON-PCB DRY PUR RESIN
type of installation
INDOOR INSTALLATION
connections - terminals
CLAMPTITE TERMINAL
mounting mode
UPRIGHT HORIZONTAL
diameter
90 MM
height
242 MM
product weight
1.6 KG
