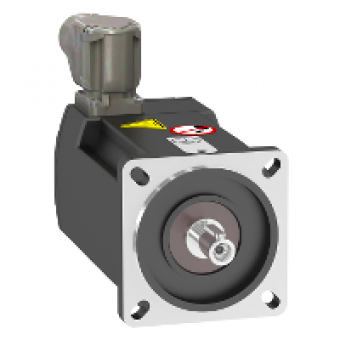

BMP0702R3NA2A - synchronous motor - BMP - 230 VAC - 0.55 kW - IP65 - IEC, Schneider Electric

  • € 419.13 Ex Tax:

MAIN CHARACTERISTICS
product or component type
SYNCHRONOUS MOTOR
device short name
BMP
maximum mechanical speed
3600 RPM
nominal output power
550 W WITH DRIVE ATV32 AT 0.55 KW 200 V SINGLE PHASE
nominal torque
1.75 N.M WITH DRIVE ATV32 AT 0.55 KW 200 V SINGLE PHASE
nominal speed
3000 RPM WITH DRIVE ATV32 AT 0.55 KW 200 V SINGLE PHASE
product compatibility
VARIABLE SPEED DRIVE ATV32 AT 0.55 KW 200 V SINGLE PHASE
shaft end
KEYED
IP degree of protection
IP65 STANDARD
holding brake
WITHOUT
mounting support
INTERNATIONAL STANDARD FLANGE
electrical connection
ROTATABLE RIGHT-ANGLED CONN
COMPLEMETARY CHARACTERISTICS
range compatibility
ALTIVAR 32
[Us] rated supply voltage
230 V
network number of phases
SINGLE PHASE
maximum current Irms
5.6 A WITH DRIVE ATV32 AT 0.55 KW 200 V SINGLE PHASE
nominal operating frequency
250 HZ WITH DRIVE ATV32 AT 0.55 KW 200 V SINGLE PHASE
minimum operating frequency
25 HZ WITH DRIVE ATV32 AT 0.55 KW 200 V SINGLE PHASE
maximum operating frequency
300 HZ WITH DRIVE ATV32 AT 0.55 KW 200 V SINGLE PHASE
shaft diameter
11 MM
shaft length
23 MM
key width
4 MM
motor flange size
70 MM
torque constant
0.84 N.MA AT 40 C
number of motor poles
5
number of motor stacks
2
rotor inertia
1.13 KG.CM
stator resistance
2.19 OHM AT 40 C
stator inductance
6.45 MH FOR Q-AXIS WINDING AT 40 C
maximum radial force Fr
710 N AT 1000 RPM
maximum axial force Fa
0.2 X FR
type of cooling
NATURAL CONVECTION
length
154 MM
centring collar diameter
60 MM
centring collar depth
2.5 MM
number of mounting holes
4
mounting holes diameter
5.5 MM
circle diameter of the mounting holes
75...82 MM
product weight
1.8 KG
