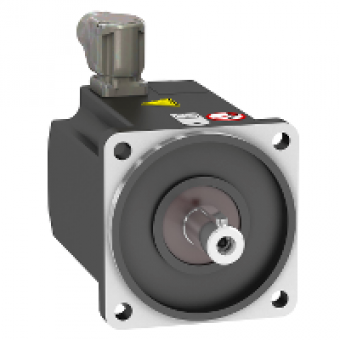

• BMP1001R3NA2A - synchronous motor - BMP - 230 VAC - 0.75 kW - IP65 - IEC, Schneider Electric

BMP1001R3NA2A - synchronous motor - BMP - 230 VAC - 0.75 kW - IP65 - IEC, Schneider Electric

  • € 489.94 Ex Tax:

MAIN CHARACTERISTICS
product or component type
SYNCHRONOUS MOTOR
device short name
BMP
maximum mechanical speed
3600 RPM
nominal output power
750 W WITH DRIVE ATV32 AT 0.75 KW 200 V SINGLE PHASE
nominal torque
2.39 N.M WITH DRIVE ATV32 AT 0.75 KW 200 V SINGLE PHASE
nominal speed
3000 RPM WITH DRIVE ATV32 AT 0.75 KW 200 V SINGLE PHASE
product compatibility
VARIABLE SPEED DRIVE ATV32 AT 0.75 KW 200 V SINGLE PHASE
shaft end
KEYED
IP degree of protection
IP65 STANDARD
holding brake
WITHOUT
mounting support
INTERNATIONAL STANDARD FLANGE
electrical connection
ROTATABLE RIGHT-ANGLED CONN
COMPLEMETARY CHARACTERISTICS
range compatibility
ALTIVAR 32
[Us] rated supply voltage
230 V
network number of phases
SINGLE PHASE
maximum current Irms
7.2 A WITH DRIVE ATV32 AT 0.75 KW 200 V SINGLE PHASE
nominal operating frequency
250 HZ WITH DRIVE ATV32 AT 0.75 KW 200 V SINGLE PHASE
minimum operating frequency
25 HZ WITH DRIVE ATV32 AT 0.75 KW 200 V SINGLE PHASE
maximum operating frequency
300 HZ WITH DRIVE ATV32 AT 0.75 KW 200 V SINGLE PHASE
shaft diameter
19 MM
shaft length
40 MM
key width
6 MM
motor flange size
100 MM
torque constant
0.884 N.MA AT 40 C
number of motor poles
5
number of motor stacks
1
rotor inertia
3.19 KG.CM
stator resistance
1.28 OHM AT 40 C
stator inductance
4.08 MH FOR Q-AXIS WINDING AT 40 C
maximum radial force Fr
900 N AT 1000 RPM
maximum axial force Fa
0.2 X FR
type of cooling
NATURAL CONVECTION
length
128.6 MM
centring collar diameter
95 MM
centring collar depth
3.5 MM
number of mounting holes
4
mounting holes diameter
9 MM
circle diameter of the mounting holes
115 MM
product weight
3.34 KG
The Schneider Electric BMP1001R3NA2A is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
