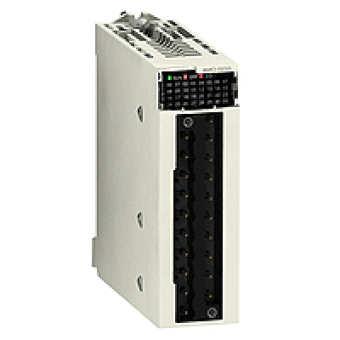

BMXAMI0810 - isolated analog input module, Schneider Electric
- Product Code: BMXAMI0810
- Brand: Schneider Electric
- Availability: To be confirmed
- € 545.47 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON X80
product or component type
ANALOG INPUT MODULE
electrical connection
1 CONNECTOR 28 WAYS
Isolation between channels
ISOLATED
input level
HIGH LEVEL
analogue input number
8
analogue input type
CURRENT +- 20 MA
COMPLEMETARY CHARACTERISTICS
analog/digital conversion
16 BITS
analogue input resolution
15 BITS + SIGN
input impedance
10 MOHM
permitted overload on inputs
+- 30 MA 0..20 MA
internal conversion resistor
250 OHM
precision of internal conversion resistor
0.1 - 15 PPMDC
type of filter
FIRST ORDER DIGITAL FILTERING
fast read cycle time
1 MS + 1 MS X NB OF CH USED
nominal read cycle time
9 MS FOR 8 CHANNELS
measurement error
<= 0.1 OF FULL SCALE +- 10 V 0...60 C
temperature drift
30 PPMDC
common mode between channels
>= 80 DB
digital value format
+ -10000 BY DEFAULT
isolation voltage
300 V DC BETWEEN CHANNELS
measurement resolution
0.36 MV +- 10 V
maximum conversion value
+- 11.4 V +- 10 V
status LED
1 LED GREEN RUN
product weight
0.165 KG
current consumption
150 MA AT 3.3 V DC
