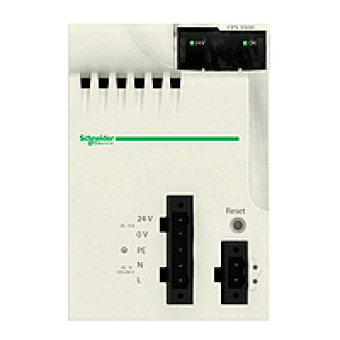

BMXCPS3500 - power supply module X80 - 100..240 V AC - 36 W, Schneider Electric
- Product Code: BMXCPS3500
- Brand: Schneider Electric
- Availability: To be confirmed
- € 383.10 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON X80
product or component type
POWER SUPPLY MODULE
backplane compatibility
NOT COMPATIBLE WITH BMEXBP..02
primary voltage
100..240 V
supply circuit type
AC
secondary power
15 W 3.3 V DC IO MODULE LOGIC POWER SUPPLY
COMPLEMETARY CHARACTERISTICS
primary voltage limit
85..264 V
network frequency
50 60 HZ
network frequency limits
47...63 HZ
apparent power
0.07 KVA
input current
0.52 A 240 V
inrush current
<= 30 A 120 V
I²t on activation
<= 1 A.S 120 V
It on activation
<= 0.05 A.S 120 V
protection type
INTERNAL FUSE NOT ACCESSIBLE PRIMARY CIRCUIT
current at secondary voltage
0.9 A 24 V DC SENSOR POWER SUPPLY
power dissipation in W
<= 8.5 W
status LED
1 LED GREEN RACK VOLTAGE OK
control type
RESET PUSHBUTTON COLD RESTART
electrical connection
1 CONNECTOR 2 PINS ALARM RELAY
insulation resistance
>= 100 MOHM PRIMARYGROUND
product weight
0.36 KG
