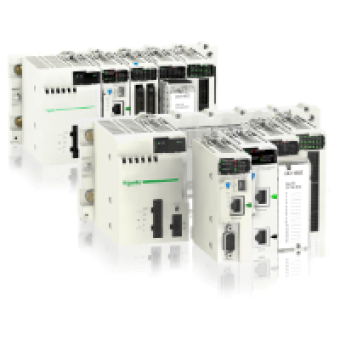

BMXNOR0200H - Ethernet / Serial RTU module - 2 x RJ45, Schneider Electric
- Product Code: BMXNOR0200H
- Brand: Schneider Electric
- Availability: To be confirmed
- € 915.79 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON X80
product or component type
ETHERNETSERIAL RTU MODULE
product specific application
FOR STD + SEVERE ENVIRONMENTS
concept
TRANSPARENT READY
integrated connection type
ETHERNET RJ45 10100 MBITS 1 TWISTED PAIR TRANSPARENT READY CLASS C30
protective treatment
CONFORMAL COATING HUMISEAL1A33
environmental characteristic
3C3 CONFORMING TO ENIEC 60721-3-3
COMPLEMETARY CHARACTERISTICS
communication service
BANDWIDTH MANAGEMENT
port Ethernet
10BASE-T 100BASE-TX
memory description
SUPPLIED FLASH SD MEMORY CARD BMXRWS128MWF 128000 KB
memory usage
ACTIVATING THE STANDARD WEB SERVER
supply
INTERNAL POWER SUPPLY VIA RACK
local signalling
1 LED GREEN ACTIVITY ON ETHERNET NETWORK ETH ACT
current consumption
95 MA AT 24 V DC
module format
STANDARD
product weight
0.2 KG
