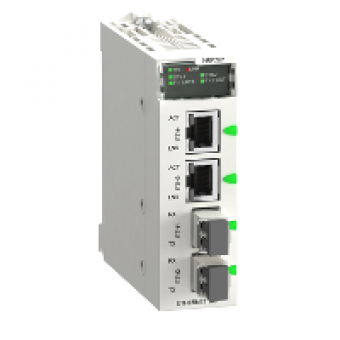

BMXNRP0201 - Fiber Converter SM/LC 2CH 100Mb, Schneider Electric
- Product Code: BMXNRP0201
- Brand: Schneider Electric
- Availability: To be confirmed
- € 515.46 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON X80
product or component type
FIBRE OPTIC REPEATER
optic fiber type
SINGLE MODE
COMPLEMETARY CHARACTERISTICS
rated voltage
24 V
current consumption
140 MA
function available
HOT SWAP
number of port
2 RJ45 WITH 100BASE-TX PORT ETHERNET CONFORMING TO IEEE 802.3U
local signalling
1 LED - GREEN FOR POWER SUPPLY STATUS
wavelength
1310 NM
operating distance
0..15000 M
attenuation
-15..-8 DB 9125 M
rise/fall time
2.5 NS
receiver sensitivity
- 31..- 8 DBM
marking
CE
width
32 MM
height
100 MM
depth
86 MM
product weight
203 G
